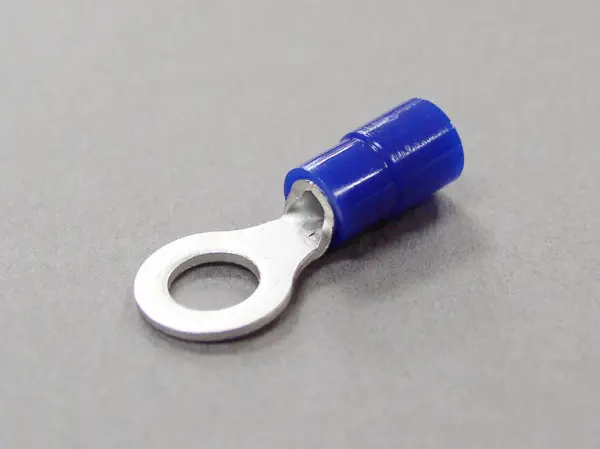

Eco-Friendly Polycarbonate Insulated Ring Terminals

(TMEX 2-5-BLU)
11.87
Package Qty: 1000
Quantity:

Technical Resources
Features
  • Excellent for insulation with rated voltage of 600V
  • Temperature range: -40°F to +257°F (-40°C to +125°C)
  • Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
  • RoHS SOC 10 Compliant
  • 2 standard colors available for each size: 1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Specifications
  • Stud: 10
  • AWG: 16-14
  • B: 9.5mm / 0.37"
  • L: 22.5mm / 0.89"
  • F: 7.75mm / 0.31"
  • øD: 4.6mm / 0.18"
  • ød2: 5.3mm / 0.21"
  • Wire Size Range for Stranded Wire (mm²): 1.04-2.63
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • Standards: UL, CSA, JIS
  • RoHS: RoHS 10
  • H: 10.0mm / 0.39"
  • Color: Blue
  • Rated Voltage: 600V
  • Rated Temperature: -40°F to +257°F (-40°C to +125°C)
