Insulated Terminals and Sleeves
∕
Insulated Ring Terminals
∕
Polycarbonate Insulated Ring Terminals 24-10 AWG
∕ Eco-Friendly Polycarbonate Insulated Ring Terminals

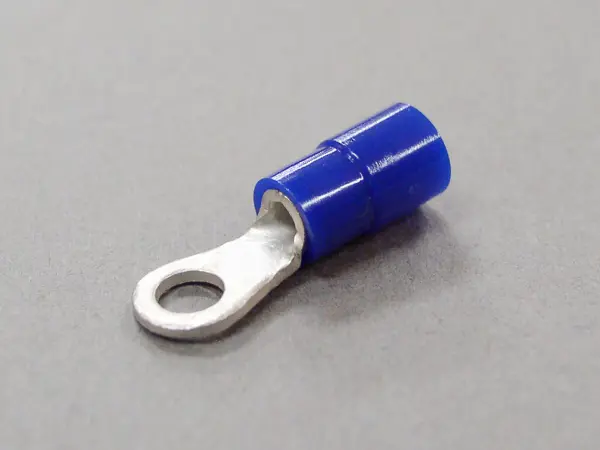

Eco-Friendly Polycarbonate Insulated Ring Terminals
(TMEX 2-3.5-BLU)
12.31
Package Qty: 1000
Quantity:
Add to Quote
Technical Resources
About TMEX
Features
Excellent for insulation with rated voltage of 600V
Temperature range:
-40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size:
1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Specifications
Stud:
6
AWG:
16-14
B:
6.6mm / 0.26"
L:
19.9mm / 0.78"
F:
6.6mm / 0.26"
øD:
4.6mm / 0.18"
ød2:
3.7mm / 0.15"
Wire Size Range for Stranded Wire (mm²):
1.04-2.63
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
Standards:
UL, CSA, JIS
RoHS:
RoHS 10
H:
10.0mm / 0.39"
Color:
Blue
Rated Voltage:
600V
Rated Temperature:
-40°F to +257°F (-40°C to +125°C)
