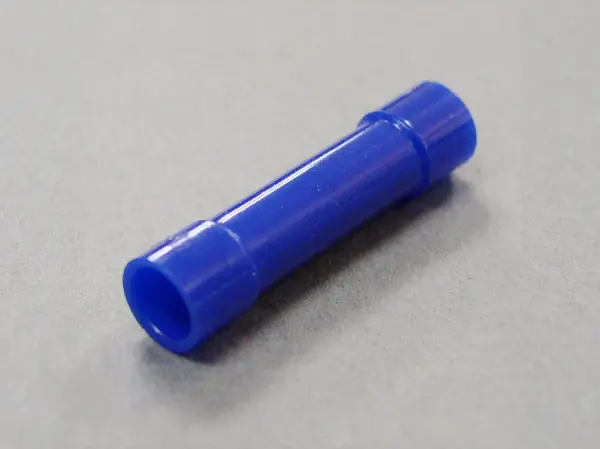

Insulated Butt Connectors, Flared

(TMV B-2-BLU)
19.96
Package Qty: 1000
Quantity:

Specifications
  • AWG: 16-14

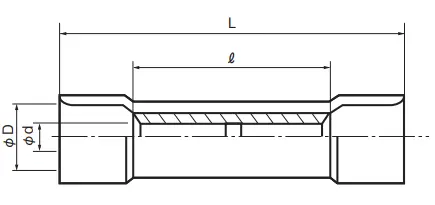

  • ød: 2.3mm / 0.09"
  • øD: 4.5mm / 0.18"
  • L: 25.5mm / 1"
  • l: 15mm / 0.59"
  • Wire Size Range for Stranded Wire (mm²): 1.04-2.63
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Vinyl
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 167°F / -40°C to 75°C
  • Applicable Hand Tools: NH 12, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 12, N3 12
  • Standards: CSA
  • RoHS: RoHS 10
