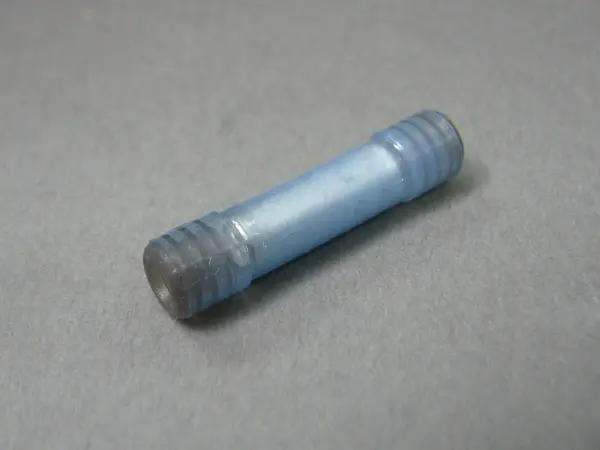

Insulated Butt Connectors, Flared

(TMN B-2-WP-BCL)

0

Package Qty: 1000

Quantity:

Specifications

AWG: 16-14

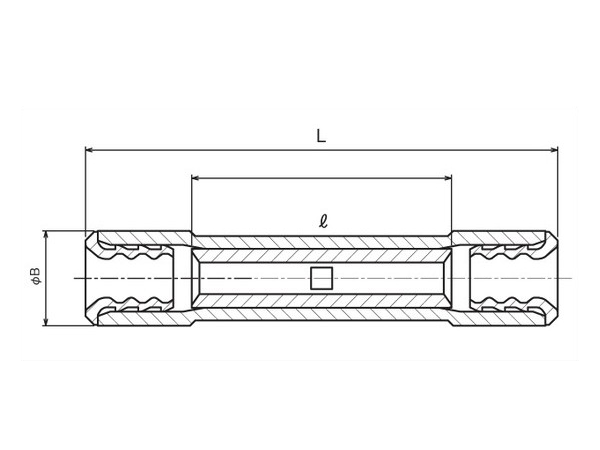

L: 26.9mm / 1.06"
øB: 6.1mm / 0.24"
l: 15mm / 0.59"
Wire Size Range for Stranded Wire (mm²): 1.04-2.63
Wire Outside Diameter: ø3.0-ø3.6
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator): Nylon
Rated Voltage: 300V
Insulator Temperature: -40°F to 221°F / -40°C to 105°C
Applicable Hand Tools: NH 64
Appicable Crimpint Machines: -
Applicable Dies: -
Standards: -
RoHS: RoHS 10
