Insulated Terminals and Sleeves
∕
Insulated Butt & Parallel Connectors
∕
Flared, Insulated Butt Connectors w/Extra Copper Sleeve
∕ Insulated Butt Connectors, Flared, Extra Copper Sleeve

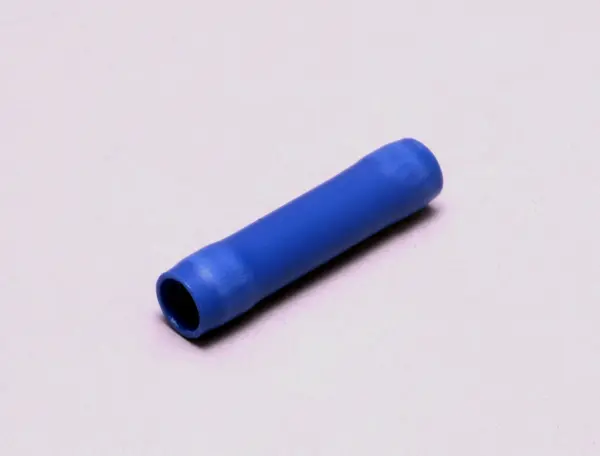

Insulated Butt Connectors, Flared, Extra Copper Sleeve
(TMDV B-2-BLU)
0
Package Qty: 1000
Quantity:
Add to Quote
Specifications
AWG:
16-14

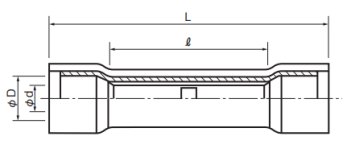

ød:
2.3mm / 0.09"
øD:
4.3mm / 0.17"
L:
25.5mm / 1"
l:
15mm / 0.59"
Wire Size Range for Stranded Wire (mm²):
1.04-2.63
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator):
Vinyl
Rated Voltage:
300V
Insulator Temperature:
-40°F to 167°F / -40°C to 75°C
Applicable Hand Tools:
NH 12, NH 32
Appicable Crimpint Machines:
-
Applicable Dies:
-
Standards:
CSA
RoHS:
RoHS 6
