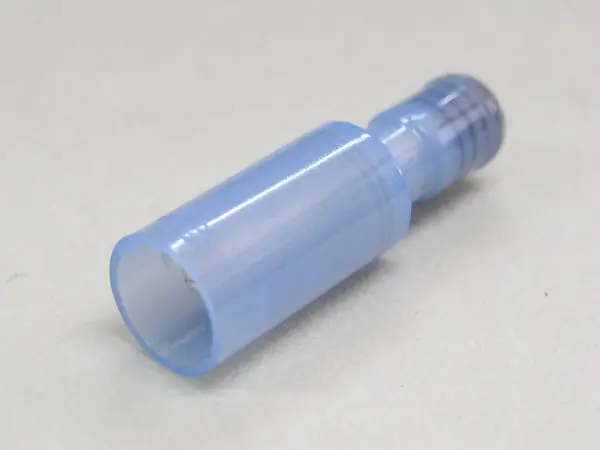

Insulated Bullet & Receptacle Connectors - WP Type

(PC 4020-M-WP-BCL)
0
Package Qty: 1000
Quantity:

Specifications
  • Protection: IP57 (IEC529)
  • AWG: 14

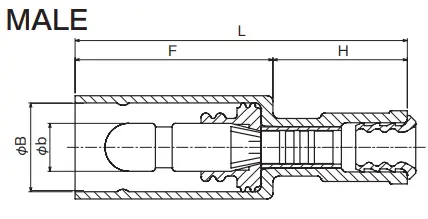

  • øb: 4mm / 0.16"
  • øB: 7.4mm / 0.29"
  • L: 27.7mm / 1.09"
  • F: 16.5mm / 0.65"
  • H: 11.2mm / 0.44"
  • Wire Size Range for Stranded Wire: 2.0mm²
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Rated Current: 20A
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2
  • Standard Color: Blue Translucent
  • Applicable Hand Tools: NH 64
  • Wire Outside Diameter: ø3.0-3.6mm
  • RoHS: RoHS 10
