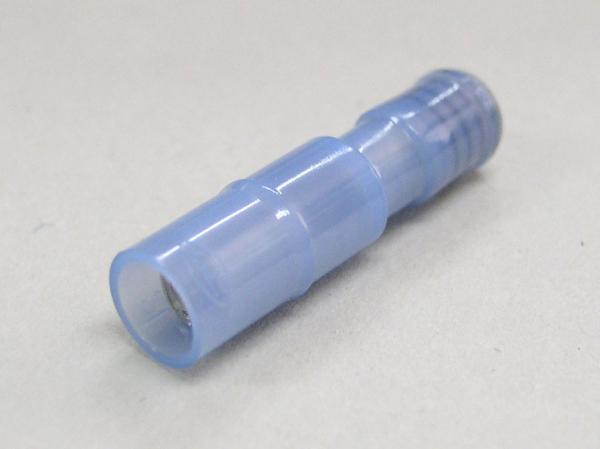

Insulated Bullet & Receptacle Connectors - WP Type
(PC 4020-F-WP-BCL)
0
Package Qty: 1000
Quantity:
Add to Quote
Specifications
Protection:
IP57 (IEC529)
AWG:
14

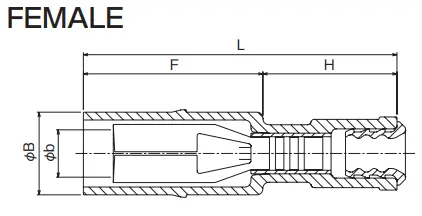

øb:
3.9mm / 0.15"
øB:
6.9mm / 0.27"
L:
26.2mm / 1.03"
F:
15mm / 0.59"
H:
11.2mm / 0.44"
Wire Size Range for Stranded Wire:
2.0mm²
Material (Terminal):
Brass (electro-tin-plated)
Material (Sleeve):
Oxygen free copper tube (electro-tin-plated)
Material (Insulator):
Nylon
Rated Voltage:
300V
Rated Current:
20A
Insulator Temperature:
-40°F to 221°F / -40°C to 105°C
Flame Retardance:
UL 94 V-2
Standard Color:
Blue Translucent
Applicable Hand Tools:
NH 64
Wire Outside Diameter:
ø3.0-3.6mm
RoHS:
RoHS 10
