Insulated Bullet & Receptacle Connectors - PC Type
(PC 4020-M-BCL)
0
Package Qty: 1000
Quantity:
Add to Quote
Specifications
AWG:
14

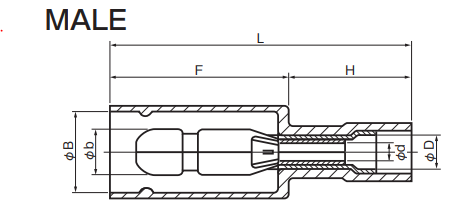

øb:
4mm / 0.16"
øB:
7.4mm / 0.29"
ød:
2.4mm / 0.09"
øD:
3.9mm / 0.15"
L:
27.7mm / 1.09"
F:
16.5mm / 0.65"
H:
11.2mm / 0.44"
Wire Size Range for Stranded Wire:
2.0mm²
Material (Terminal):
Brass (electro-tin-plated)
Material (Sleeve):
Oxygen free copper tube (electro-tin-plated)
Material (Insulator):
Nylon
Rated Voltage:
300V
Rated Current:
20A
Insulator Temperature:
-40°F to 221°F / -40°C to 105°C
Flame Retardance:
UL 94 V-2
Standard Color:
Blue
Applicable Hand Tools:
NH 12, NH 32
Appicable Crimpint Machines:
NA 10, NA 3
Applicable Dies:
N10 12, N3 12
RoHS:
RoHS 10
