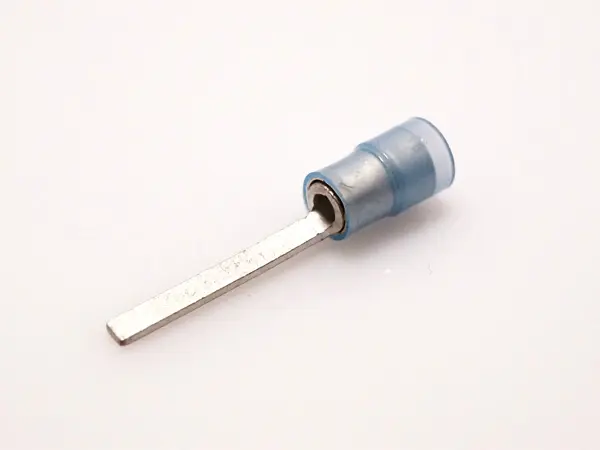

Insulated Blade Terminals, Flared, Extra Copper Sleeve

(TMDEN BT-2-9-BCL)
0
Package Qty: 1
Quantity:

Specifications
  • AWG: 16-14
  • B: 2.79mm / 0.11"
  • t: 0.86mm / 0.03"
  • L: 19.1mm / 0.75"
  • G: 9.09mm / 0.36"
  • H: 10mm / 0.39"
  • D: 4.49mm / 0.18"
  • Wire Size Range for Stranded Wire (in²): 0.002-0.004in²
  • Material (Connector Contact): Copper
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Standards: UL, CSA
