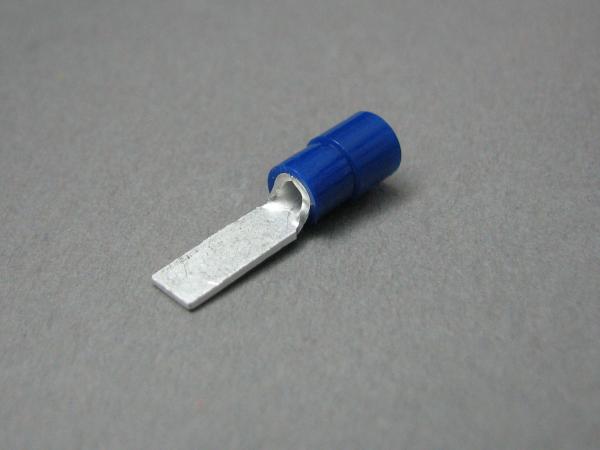

Eco-Friendly Polycarbonate Insulated Blade Terminals

(TMEX BT-2-9-1-BLU)
0
Package Qty: 1000
Quantity:

Technical Resources
Features
  • Excellent for insulation with rated voltage of 600V
  • Temperature range: -40°F to +257°F (-40°C to +125°C)
  • Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
  • RoHS SOC 10 Compliant
  • 2 standard colors available for each size: 1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Specifications
  • AWG: 16-14
  • B: 2.2mm / 0.09"
  • t: 0.85mm / 0.03"
  • L: 19mm / 0.75"
  • G: 9mm / 0.35"
  • H: 10mm / 0.39"
  • øD: 4.6mm / 0.18"
  • Wire Size Range for Stranded Wire (mm²): 1.04-2.63
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Polycarbonate
  • Rated Voltage: 600V
  • Insulator Temperature: -40°F to 257°F / -40°C to 125°C
  • Applicable Hand Tools: NH 12, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 12, N3 12
  • Standards: UL, C-UL
  • RoHS: RoHS 10
