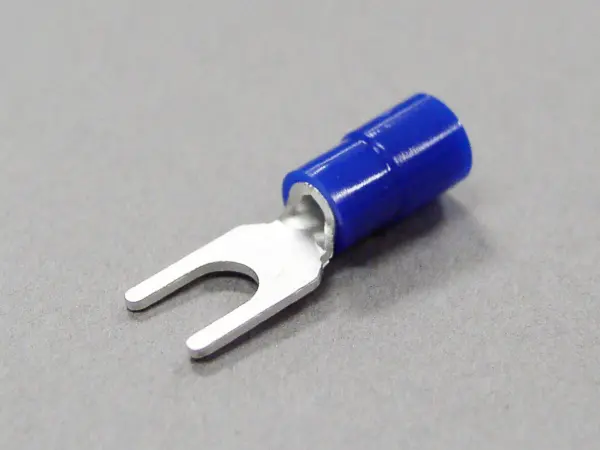

Eco-Friendly Polycarbonate Insulated Spade Terminals

(TMEX 2Y-4N-BLU)
13.27
Package Qty: 1000
Quantity:

Specifications
  • Stud: 8
  • AWG: 16-14
  • d2: 4.3mm / 0.17"
  • B: 6.4mm / 0.25"
  • L: 21.5mm / 0.85"
  • F: 6.6mm / 0.26"
  • H: 10mm / 0.39"
  • øD: 4.6mm / 0.18"
  • Wire Size Range for Stranded Wire (mm²): 1.04-2.63
  • Applicable Hand Tools: NH 12, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 12, N3 12
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Polycarbonate
  • Rated Voltage: 600V
  • Insulator Temperature: -40°F to 257°F / -40°C to 125°C
  • Standards: UL, C-UL
  • RoHS: RoHS 10
