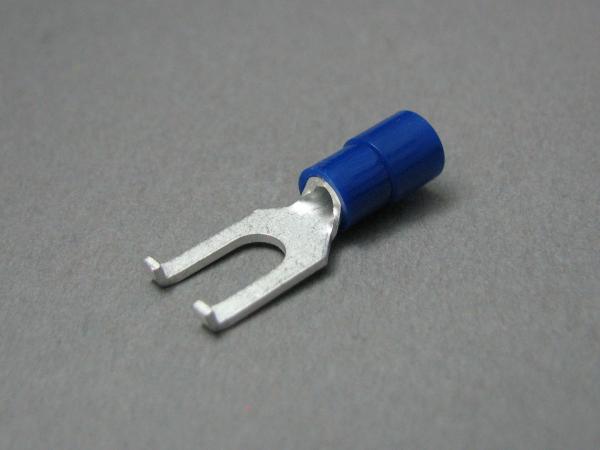

Eco-Friendly Polycarbonate Insulated Flange Spade Terminals

(TMEX 2Y-5W-BLU)

Package Qty: 1000

Quantity:

Technical Resources

Features

Excellent for insulation with rated voltage of 600V
Temperature range: -40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size: 1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)

Specifications

Stud: 10
AWG: 16-14

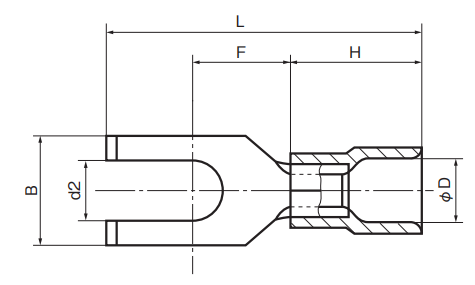

d2: 5.3mm / 0.21"
B: 8mm / 0.31"
L: 24mm / 0.94"
F: 7.3mm / 0.29"
H: 10mm / 0.39"
øD: 4.6mm / 0.18"
Wire Size Range for Stranded Wire (mm²): 1.04-2.63
Applicable Hand Tools: NH 12, NH 32
Appicable Crimpint Machines: NA 10, NA 3
Applicable Dies: N10 12, N3 12
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator): Polycarbonate
Rated Voltage: 600V
Insulator Temperature: -40°F to 257°F / -40°C to 125°C
Standards: UL, C-UL
RoHS: RoHS 10
