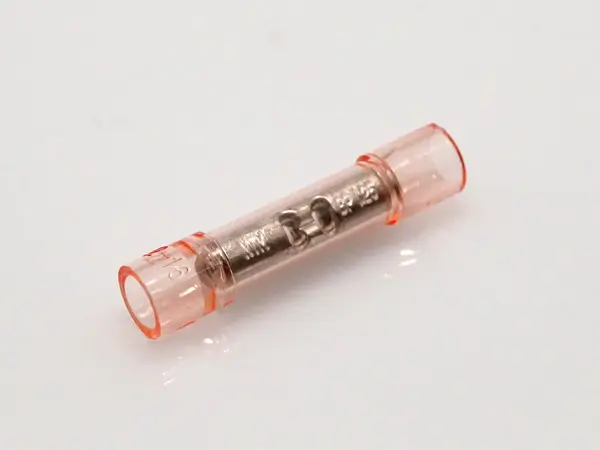

Polycarbonate Butt Connector, Flared

(TMX BP-1.25-RCL)
0
Package Qty: 1000
Quantity:

Specifications
  • AWG: 20-16
  • ød: 1.7mm / 0.07"
  • øD: 3.8mm / 0.15"
  • L: 25.5mm / 1"
  • l: 15mm / 0.59"
  • Wire Size Range for Stranded Wire (mm²): 0.5-1.65
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Polycarbonate
  • Rated Voltage: 600V
  • Insulator Temperature: -40°F to 257°F / -40°C to 125°C
  • Applicable Hand Tools: NH 11, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 11, N3 11
  • Standard Color: Translucent Red
  • RoHS: RoHS 10
