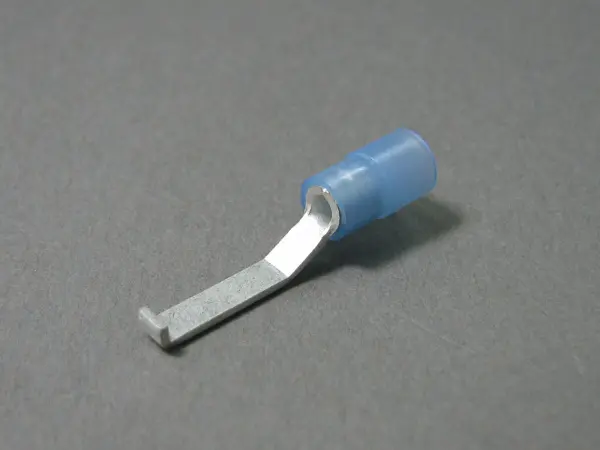

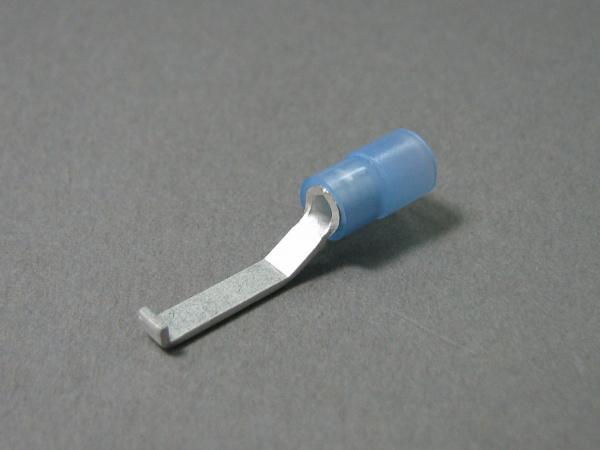

Nylon Lipped Blade Terminal

(TMEN BT-2-17-BCL)

Package Qty: 1000

Quantity:

Features

2 standard colors available for each size: 1.25mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Excellent for insulation with rated voltage of 600V
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
Temperature range: -40°F to +257°F (-40°C to +125°C)

Specifications

AWG: 16-14
B: 3.0mm / 0.12"
t: 0.85mm / 0.03"
l: 12.7mm / 0.5"
L: 27.0mm / 1.06"
J: 2.30mm / 0.09"
H: 10.0mm / 0.39"
øD: 4.6mm / 0.18"
Wire Size Range for Stranded Wire (mm²): 1.04-2.63
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator): Nylon
Rated Voltage: 300V
Insulator Temperature: -40°F to 221°F / -40°C to 105°C
Applicable Hand Tools: NH 12, NH 32
Appicable Crimpint Machines: NA 10, NA 3
Applicable Dies: N10 12, N3 12
Standards: UL, C-UL
RoHS: RoHS 10
