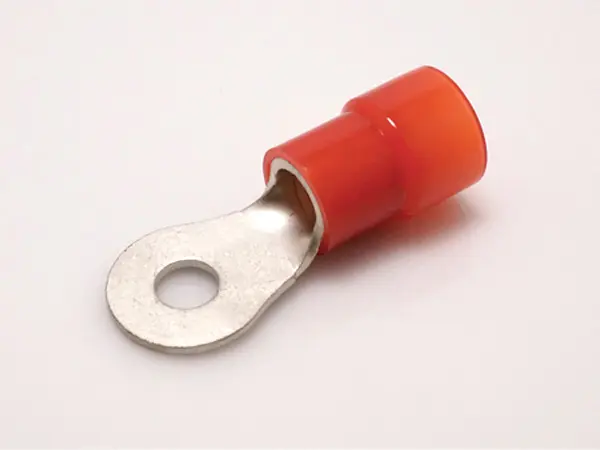

Nylon Insulated Ring Terminals

(TMEN 38-8)

Package Qty: 1

Quantity:

Specifications

Material (Insulator): Nylon
RoHS: RoHS 10

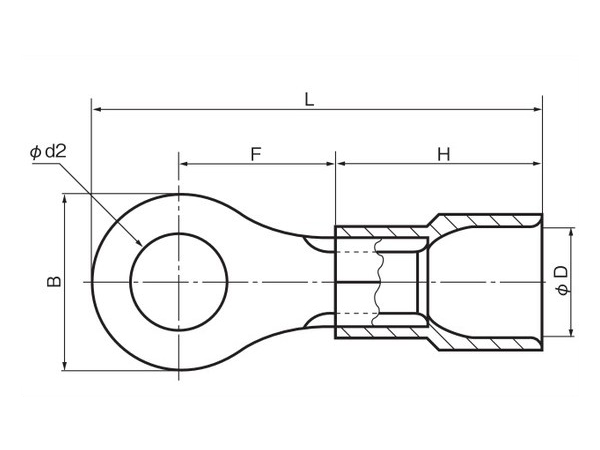

L: 56.3mm / 2.22"
Standards: UL/CSA
Applicable Hand Tools: N/A
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
B: 22mm / 0.87"
Applicable Crimping Machines: N/A
H: 27mm / 1.06"
Rated Voltage: 300V
Applicable Dies: N/A
Insulation Temperature: -40°F to 221°F / -40°C to 105°C
F: 18.3mm / 0.72"
øD: 16.5mm / 0.65"
Wire Size Range for Stranded Wire (mm²): 0.2-0.5 (0.3-0.5 for UL & CSA)
AWG: 24-20 (22-20 for UL & CSA)
Standard Color: Yellow Translucent
ød2: 8.4mm / 0.33"
Stud: 5/16
