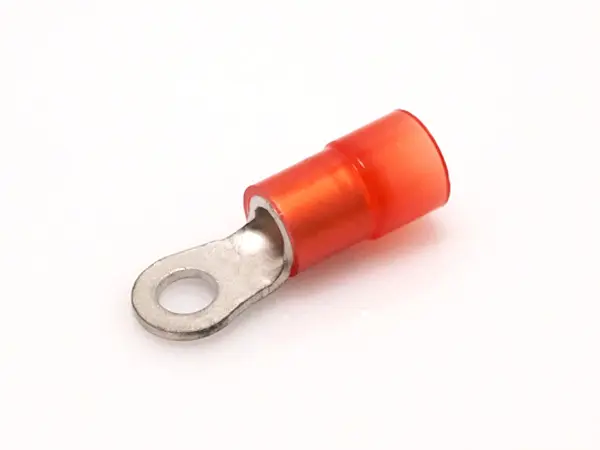

Nylon Insulated Ring Terminals

(TMEN 8-6)
0
Package Qty: 1
Quantity:

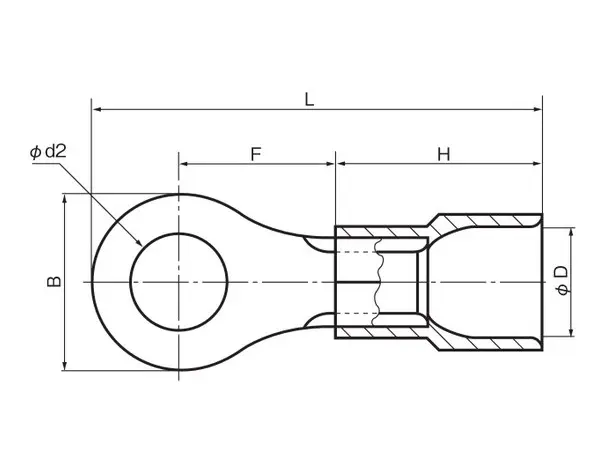

Specifications
  • Stud: 1/4
  • AWG: 8
  • B: 12mm / 0.47"
  • L: 31.6mm / 1.24"
  • F: 9.1mm / 0.36"
  • H: 16.5mm / 0.65"
  • øD: 8mm / 0.32"
  • ød2: 6.4mm / 0.25"
  • Applicable Hand Tools: N/A
  • Applicable Crimping Machines: N/A
  • Applicable Dies: N/A
  • Standard Color: Yellow Translucent
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Insulation Temperature: -40°F to 221°F / -40°C to 105°C
  • Rated Voltage: 300V
  • Standards: UL/CSA
  • RoHS: RoHS 10
REQUEST QUOTE
