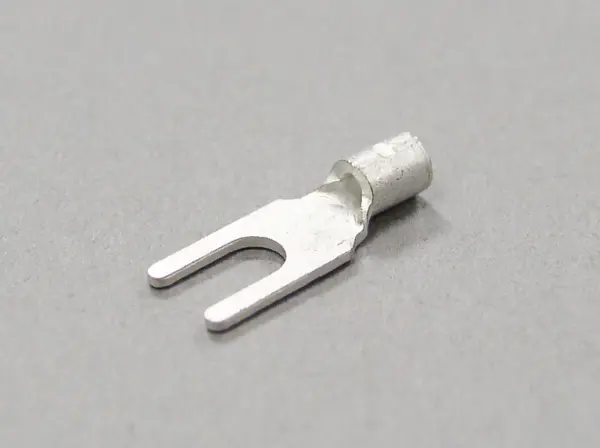

Non-Insulated Spade Terminals - Y Type

(1.25Y-3N)
8.56
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: #4
  • AWG: 22-16
  • B: 5.8mm / 0.23"
  • L: 16mm / 0.63"
  • F: 6.6mm / 0.26"
  • E: 4.5mm / 0.18"
  • ⌀D: 3.4mm / 0.13"
  • ⌀d: 1.7mm / 0.07"
  • ⌀d2: 3.2mm / 0.13"
  • Wire Size Range for Solid Wire (mm): 0.57-1.44
  • Wire Size Range for Stranded Wire (mm²): 0.25-1.65
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
