Non-Insulated Ring Terminals


Non-Insulated Ring Terminals

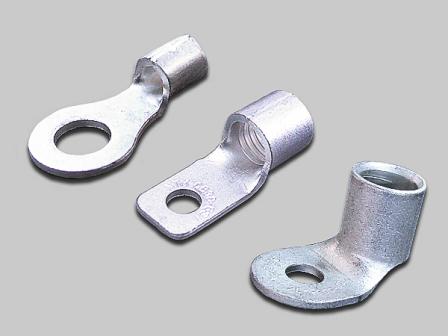

Our Non-Insulated Ring Terminals consist of wire sizes from AWG24 to 600MCM and numerous shapes and stud sizes. The brazing part of the tubular is characterized by dots so that the crimping position can be checked.

Ring terminals are the most frequently used terminal type. These terminals have a ring that fits over a stud to provide a secure connection. Non-insulated ring terminals are often used in high temperature applications where a solder joint is necessary.


UL/CSA
Crimp with our tool for UL/CSA listed products.
Otherwise crimps may not be approved by UL/CSA.

Tool-Selection-for-Non-Insulated-Terminals.pdf Tool Selection for
Non-Insulated Terminals
Terminal-Stud-Size-Chart.pdf Terminal Stud Size Chart
