∕ Non-Insulated Spade Terminals - Y Type

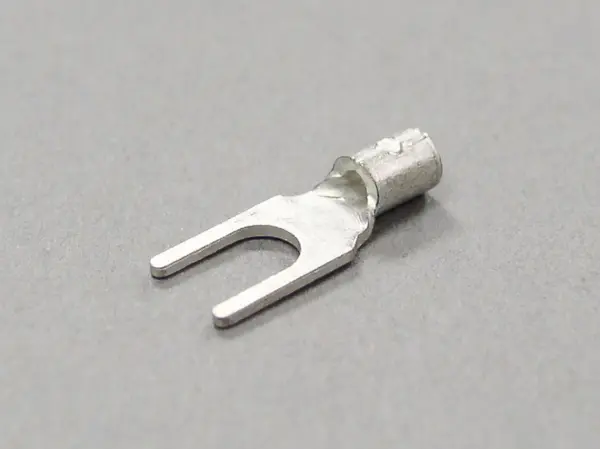

Non-Insulated Spade Terminals - Y Type
(1.25Y-3.5)
8.06
Package Qty: 1000
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
Stud:
#6
AWG:
22-16
B:
5.8mm / 0.23"
L:
15mm / 0.59"
F:
5.8mm / 0.23"
E:
4.5mm / 0.18"
øD:
3.4mm / 0.13"
ød:
1.7mm / 0.07"
ød2:
3.7mm / 0.15"
Wire Size Range for Solid Wire (mm):
0.57-1.44
Wire Size Range for Stranded Wire (mmø|):
0.25-1.65
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
Standards:
UL, CSA
RoHS:
RoHS 10
