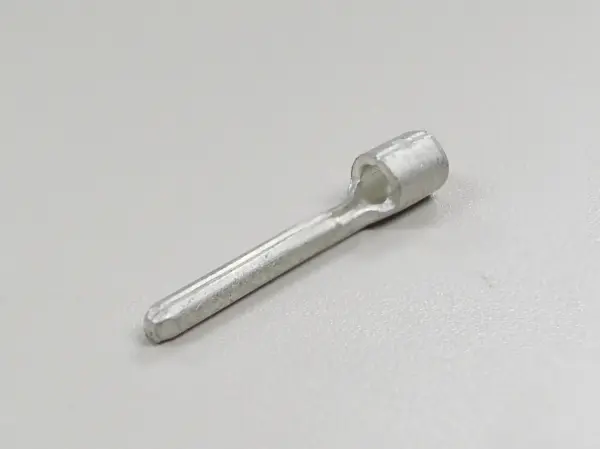

Non-Insulated Pin Terminals - TC Type

(TC 1.25-16)
12.83
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • AWG: 22-16
  • l: 16mm / 0.63"
  • L: 22mm / 0.87"
  • E: 4.5mm / 0.18"
  • øD: 3.4mm / 0.13"
  • ød: 1.7mm / 0.07"
  • øF: 1.9mm / 0.07"
  • Wire Size Range for Solid Wire (mm): 0.57-1.44
  • Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • Rated Voltage / Current: -
  • Standards: UL, CSA
  • RoHS: RoHS 10
