TC Type Pin Terminals with Insulation Cap
∕ Non-Insulated Pin Terminals with Insulation Cap - TC Type

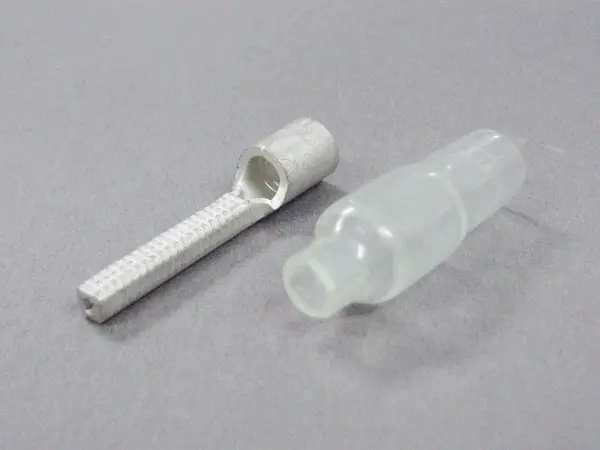

Non-Insulated Pin Terminals with Insulation Cap - TC Type
(TC 8-C)
90.705
Package Qty: 150
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
AWG:
8
l:
20mm / 0.79"
L:
33.5mm / 1.32"
E:
8.4mm / 0.33"
øD:
7.1mm / 0.28"
ød:
4.5mm / 0.18"
øF:
3.5mm / 0.14"
Wire Size Range for Solid Wire (mm):
2.89-3.65
Wire Size Range for Stranded Wire (mmø|):
6.64-10.52
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
Rated Voltage / Current:
-
Standards:
-
RoHS:
RoHS 10
We Also Recommend
Hand Crimping Tool [NH 9]
Hydraulic Hand Crimping Tool [NOP 60]
Battery-Operated Hydraulic Crimping Tool [NOM 60]
Pneumatic Crimpint Tool (NA 20B) [NA 20B]
Die for Pneumatic Crimping Tool (NA 20B) [N20 D08B]
