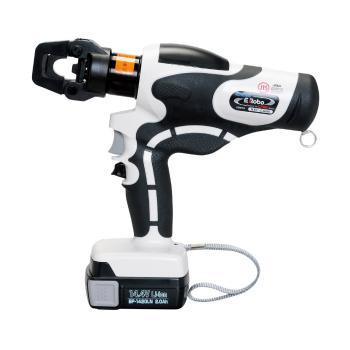

Battery-Operated Hydraulic Crimping Tool

(NOM 60)
0
Package Qty: 1
Quantity:

Features
  • Compact battery-operated hydraulic crimping tool for improved mobility
  • Delivers 54 kN (5.5 ton) crimping force with consistent performance
  • Supports (5.5, 8)* 14–60 mm² (≈6 AWG to 1/0 AWG) non-insulated terminals and sleeves, tubular terminals *() Option
  • One-hand operation reduces operator fatigue in repetitive work
  • Ideal for field applications where portability is essential
Specifications
  • Type of Tool: Battery Operated Hydraulic Tool
  • Type of Crimp: Non-Insulated Terminals and Sleeves, Tubular Terminals
  • Crimp Range: (5.5, 8)* 14, 22, 38, 60mm² *( ) Option
  • AWG: ≈6 AWG to 1/0 AWG
  • Output Power: 5.5 ton (54 kN)
  • Length: 11-1/4" (286mm)
  • Weight: 5.5 lb (2.5kg)
  • Standards: UL - CSA, JIS
