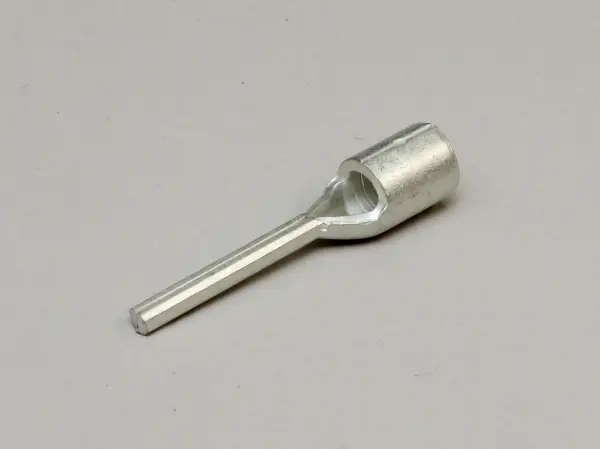

Non-Insulated Pin Terminals - TC/ST Type

(TC 8-18-ST)
0
Package Qty: 500
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • AWG: 8
  • l: 18mm / 0.71"
  • L: 33mm / 1.3"
  • E: 8.4mm / 0.33"
  • øD: 7.1mm / 0.28"
  • ød: 4.5mm / 0.18"
  • øF: 2.4mm x 2.3mm / 0.09" x 0.09"
  • Wire Size Range for Solid Wire (mm): 2.89-3.65
  • Wire Size Range for Stranded Wire (mmø|): 6.64-10.52
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • Rated Voltage / Current: -
  • Standards: -
  • RoHS: RoHS 10
