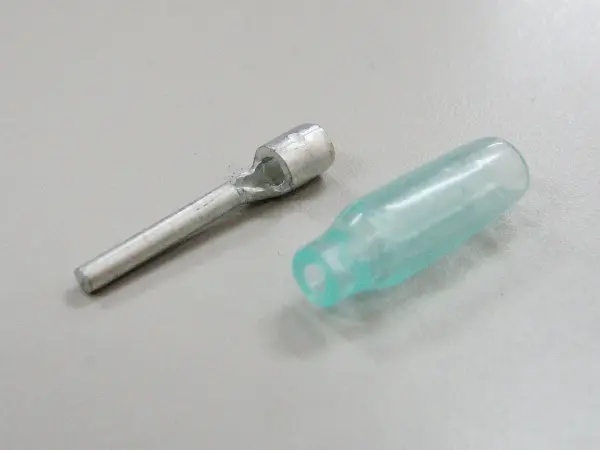

Non-Insulated Pin Terminals with Insulation Cap - TC/ST Type

(TC 2-13.5V-ST-C)
0
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • AWG: 16-14
  • øF: 1.9
  • l: 13.5, 22
  • E: 4.5
  • ?D: 4.2
  • ød: 2.3
  • Wire Size Range for Solid Wire (mm): 1.14-1.82
  • Wire Size Range for Stranded Wire (mm²): 1.04-2.63
  • Material: Cap: P.V.C. UL94 V-0
  • RoHS: RoHS 10
  • Rated Voltage / Current: 600V / 20A
