Non-Insulated Terminals and Sleeves
∕
Non-Insulated High Temperature Terminals
∕
N Type Ring Terminals
∕ Non-Insulated High Temperature Ring Terminals - N Type

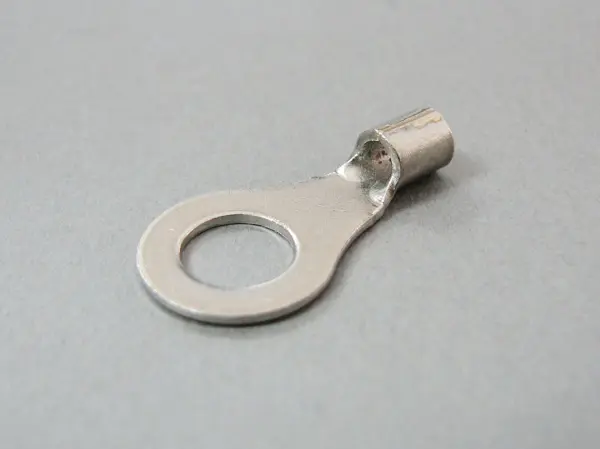

Non-Insulated High Temperature Ring Terminals - N Type
(N 8-6)
288.71
Package Qty: 1000
Quantity:
Add to Quote
Specifications
AWG:
8
Stud:
1/4"
B:
12mm / 0.47"
L:
23.5mm / 0.93"
F:
9.1mm / 0.36"
E:
8.4mm / 0.33"
øD:
7.1mm / 0.28"
ød:
4.5mm / 0.18"
ød2:
6.4mm / 0.25"
Wire Size Range for Solid Wire (mm):
2.90-3.50
Wire Size Range for Stranded Wire (mmø|):
-
Material (Connector Contact):
Nickel for 752ºF (400ºC) Max
RoHS:
RoHS 10
We Also Recommend
Hand Crimping Tool [NH 1]
Hand Crimping Tool [NH 9]
Hydraulic Hand Crimping Tool [NOP 60]
Battery-Operated Hydraulic Crimping Tool [NOM 60]
