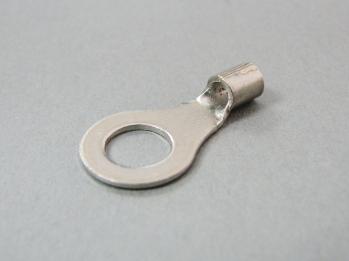

Non-Insulated High Temperature Ring Terminals - N Type

(N 8-10)
0
Package Qty: 100
Quantity:

Specifications
  • AWG: 8
  • Stud: 3/8"
  • B: 15mm / 0.59"
  • L: 29.5mm / 1.16"
  • F: 13.6mm / 0.54"
  • E: 8.4mm / 0.33"
  • øD: 7.1mm / 0.28"
  • ød: 4.5mm / 0.18"
  • ød2: 10.5mm / 0.41"
  • Wire Size Range for Solid Wire (mm): 2.90-3.50
  • Wire Size Range for Stranded Wire (mmø|): -
  • Material (Connector Contact): Nickel for 752ºF (400ºC) Max
  • RoHS: RoHS 10
