Non-Insulated High Temperature Ring Terminals - N Type

(N 38-10)
0
Package Qty: 100
Quantity:

Specifications
  • AWG: 2
  • Stud: 3/8"

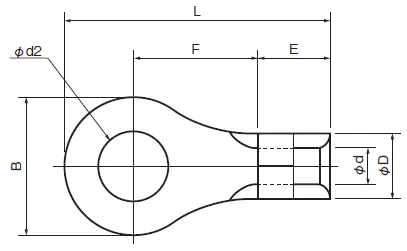

  • B: 22mm / 0.87"
  • L: 42.3mm / 1.67"
  • F: 18.3mm / 0.72"
  • E: 13mm / 0.51"
  • øD: 13.3mm / 0.52"
  • ød: 9.4mm / 0.37"
  • ød2: 10.5mm / 0.41"
  • Wire Size Range for Solid Wire (mm): 6.00-6.50
  • Wire Size Range for Stranded Wire (mmø|): -
  • Material (Connector Contact): Nickel for 752ºF (400ºC) Max
  • RoHS: RoHS 10
