Non-Insulated High Temperature Ring Terminals - N Type

(N 1.25-3)
0
Package Qty: 1000
Quantity:

Specifications
  • AWG: 22-16
  • Stud: #4

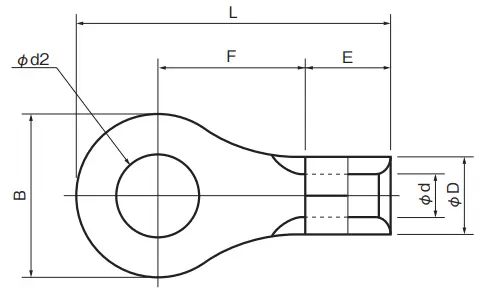

  • B: 5.5mm / 0.22"
  • L: 12mm / 0.47"
  • F: 4.75mm / 0.19"
  • E: 4.5mm / 0.18"
  • øD: 3.4mm / 0.13"
  • ød: 1.7mm / 0.07"
  • ød2: 3.2mm / 0.13"
  • Wire Size Range for Solid Wire (mm): 0.60-1.40
  • Wire Size Range for Stranded Wire (mmø|): 0.50-1.25
  • Material (Connector Contact): Nickel for 752ºF (400ºC) Max
  • RoHS: RoHS 10
