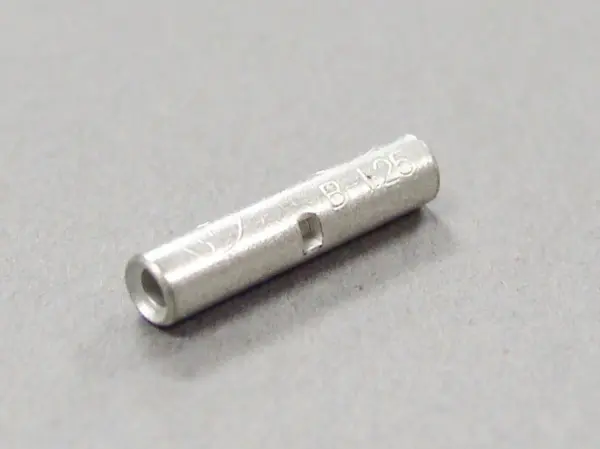

Non-Insulated Butt Connectors - B Type
(B 1.25)
8.88
Package Qty: 1000
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
AWG:
22-16
øD:
3.3mm / 0.13"
ød:
1.8mm / 0.07"
Wire Size Range for Solid Wire (mm):
0.57-1.44
Wire Size Range for Stranded Wire (mmø|):
0.25-1.65
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
Standards:
UL, CSA, JIS
We Also Recommend
Hand Crimping Tool [NH 1]
Hand Crimping Tool [NH 61A]
Hand Crimping Tool [NH 69]
