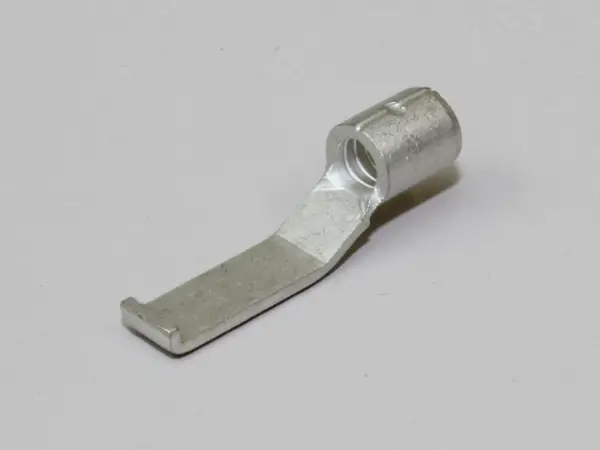

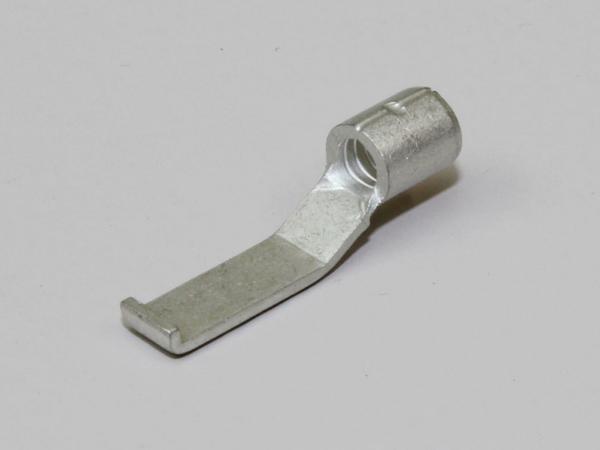

Non-Insulated Blade Terminals - BT Type Lipped
(BT 1.25-17)
0
Package Qty: 1000
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

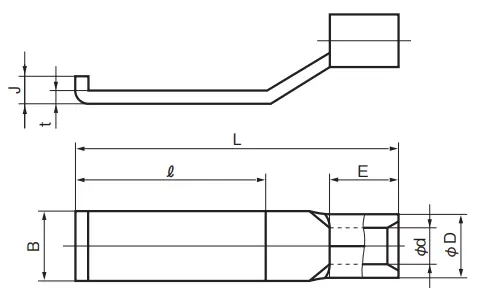

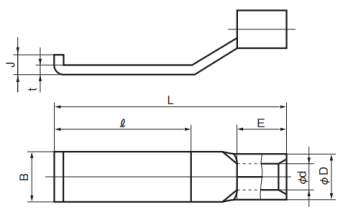

Specifications
AWG:
22-16
B:
3mm / 0.12"
t:
0.75mm / 0.03"
L:
21.5mm / 0.85"
J:
2.25mm / 0.09"
E:
4.5mm / 0.18"
øD:
3.4mm / 0.13"
ød:
1.7mm / 0.07"
Wire Size Range for Solid Wire (mm):
0.57-1.44
RoHS:
RoHS 10
Standards:
UL, CSA
l:
12.7mm / 0.5"
