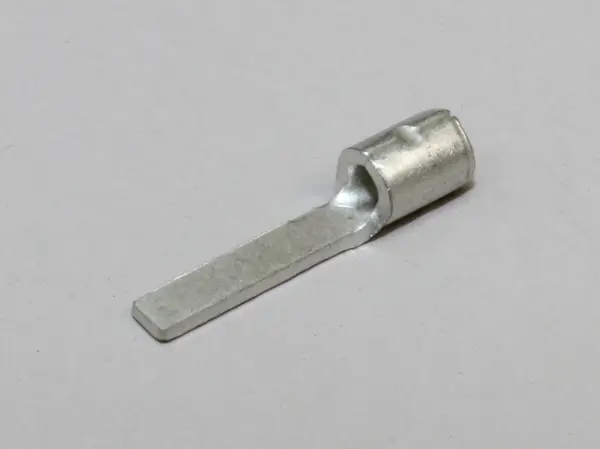

Non-Insulated Blade Terminals - BT Type

(BT 1.25-10-1)

11.34

Package Qty: 1000

Quantity:

Features

MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

Specifications

AWG: 22-16
B: 2.2mm / 0.09"
t: 0.75mm / 0.03"
L: 15mm / 0.59"
G: 10.5mm / 0.41"
E: 4.5mm / 0.18"
øD: 3.4mm / 0.13"
ød: 1.7mm / 0.07"
Wire Size Range for Solid Wire (mm): 0.57-1.44
Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
RoHS: RoHS 10
Standards: UL, CSA
