Non-Insulated Terminals and Sleeves
∕
Non-Insulated Ring Terminals
∕
Square Ring Terminals
∕ Non-Insulated Ring Terminals - Square

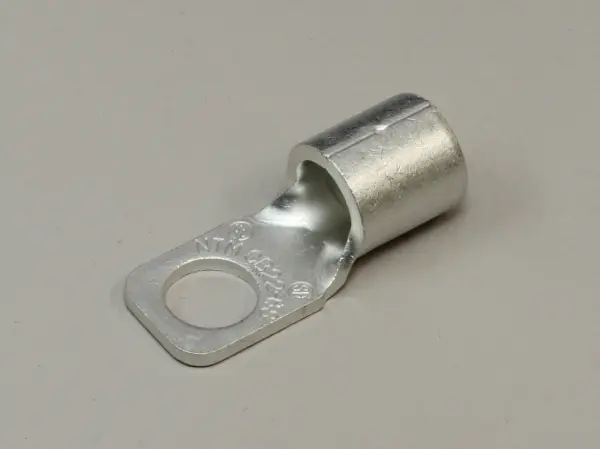

Non-Insulated Ring Terminals - Square
(CB 38-6N)
0
Package Qty: 100
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
Stud:
1/4"
AWG:
2
B:
12.5mm / 0.49"
L:
34.8mm / 1.37"
S:
5.5mm / 0.22"
F:
16.3mm / 0.64"
E:
13mm / 0.51"
øD:
13.4mm / 0.53"
ød:
9.4mm / 0.37"
ød2:
6.4mm / 0.25"
Wire Size Range for Stranded Wire (mmø|):
26.66-42.42
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
Standards:
UL, CSA
