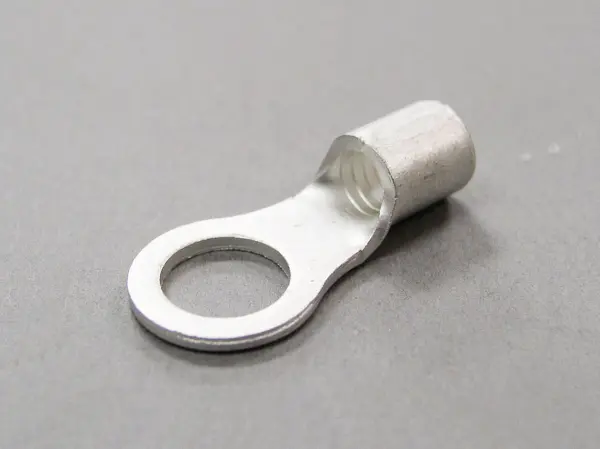

Non-Insulated Ring Terminals - R Type

(R 14-10)
72.6
Package Qty: 100
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 3/8
  • AWG: 6
  • B: 16
  • l: 32.5
  • F: 14.5
  • E: 10
  • ⌀d: 5.8, 9
  • ⌀d2: 10.5
  • Wire Size Range for Stranded Wire (mm²): 10.52-16.78
  • Material: Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA, JIS
