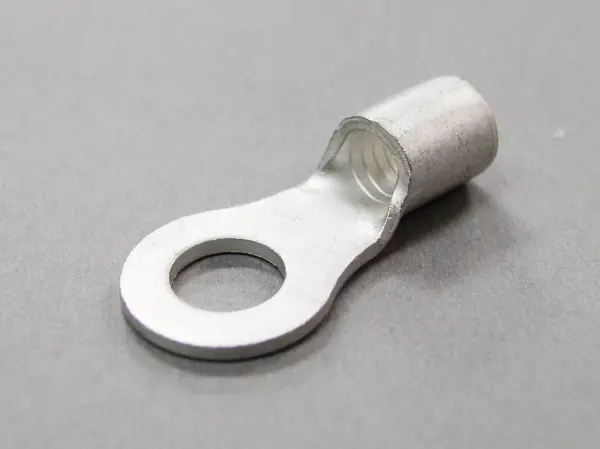

Non-Insulated Ring Terminals - R Type

(R 14-8)
73.65
Package Qty: 100
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 5/16"
  • AWG: 6
  • B: 16mm / 0.63"
  • L: 32.5mm / 1.28"
  • F: 14.5mm / 0.57"
  • E: 10mm / 0.39"
  • øD: 9mm / 0.35"
  • ød: 5.8mm / 0.23"
  • ød2: 8.4mm / 0.33"
  • Wire Size Range for Stranded Wire (mmø|): 10.52-16.78
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA, JIS
