Non-Insulated Terminals and Sleeves
∕
Non-Insulated Ring Terminals
∕
R Type Ring Terminals
∕ Non-Insulated Ring Terminals - R Type

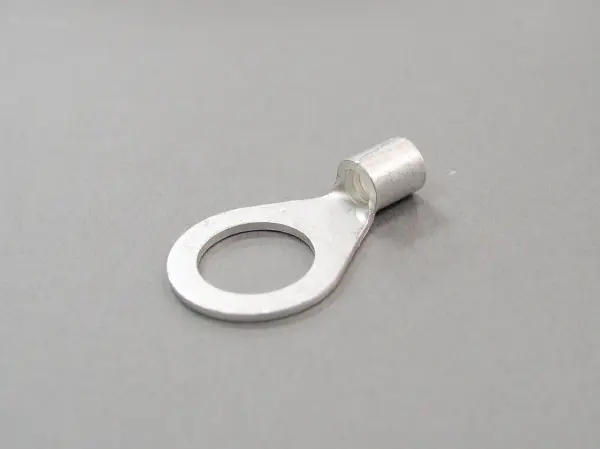

Non-Insulated Ring Terminals - R Type
(R 8-12)
20.085
Package Qty: 500
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
Stud:
1/2"
AWG:
8
B:
20mm / 0.79"
L:
33.5mm / 1.32"
F:
15.1mm / 0.59"
E:
8.4mm / 0.33"
øD:
7.1mm / 0.28"
ød:
4.5mm / 0.18"
ød2:
13mm / 0.51"
Wire Size Range for Solid Wire (mm):
2.89-3.65
Wire Size Range for Stranded Wire (mmø|):
6.64-10.52
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
Standards:
UL, CSA
