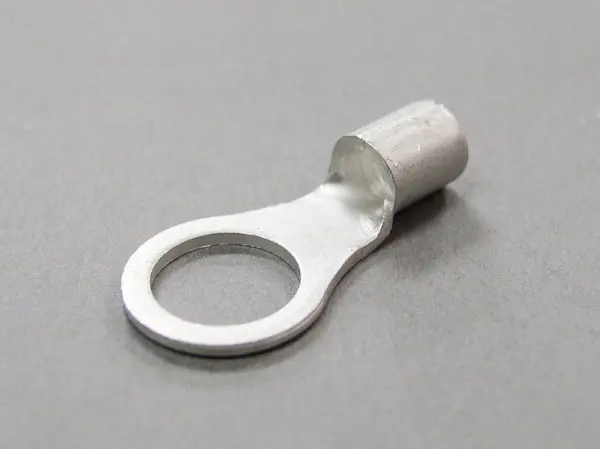

Non-Insulated Ring Terminals - R Type

(R 8-10)

33.27

Package Qty: 100

Quantity:

Features

MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

Specifications

Stud: 3/8"
AWG: 8
B: 15mm / 0.59"
L: 29.5mm / 1.16"
F: 13.6mm / 0.54"
E: 8.4mm / 0.33"
øD: 7.1mm / 0.28"
ød: 4.5mm / 0.18"
ød2: 10.5mm / 0.41"
Wire Size Range for Solid Wire (mm): 2.89-3.65
Wire Size Range for Stranded Wire (mmø|): 6.64-10.52
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
RoHS: RoHS 10
Standards: UL, CSA, JIS
