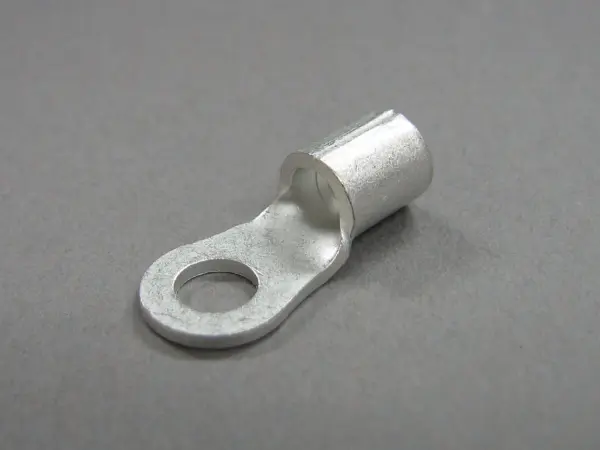

Non-Insulated Ring Terminals - R Type

(R 8-5S)
32.43
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 10
  • AWG: 8
  • B: 10
  • l: 22.5
  • F: 9.1
  • E: 8.4
  • ⌀d: 4.5, 7.1
  • ⌀d2: 5.3
  • Wire Size Range for Solid Wire (mm): 2.89-3.65
  • Wire Size Range for Stranded Wire (mm²): 6.64-10.52
  • Material: Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
