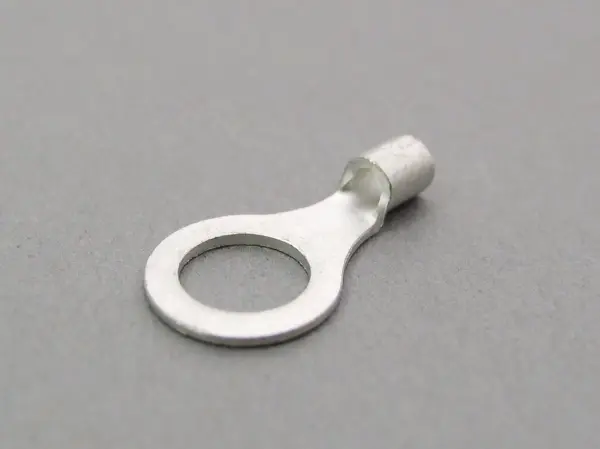

Non-Insulated Ring Terminals - R Type

(R 2-8)
13.77
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 5/16"
  • AWG: 16-14
  • B: 12mm / 0.47"
  • L: 21.5mm / 0.85"
  • F: 11mm / 0.43"
  • E: 4.5mm / 0.18"
  • øD: 4.2mm / 0.17"
  • ød: 2.3mm / 0.09"
  • ød2: 8.4mm / 0.33"
  • Wire Size Range for Solid Wire (mm): 1.14-1.82
  • Wire Size Range for Stranded Wire (mmø|): 1.04-2.63
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA, JIS
