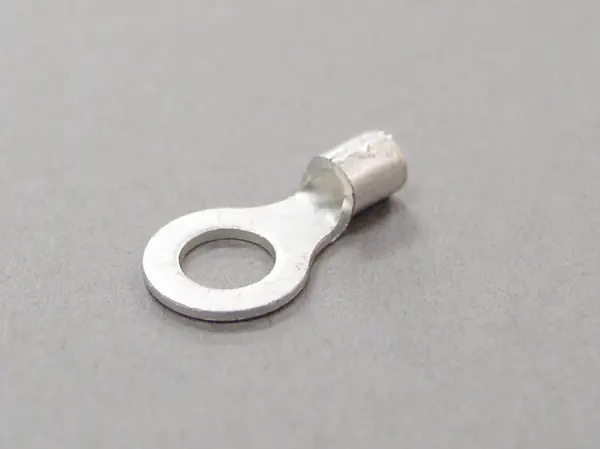

Non-Insulated Ring Terminals - R Type

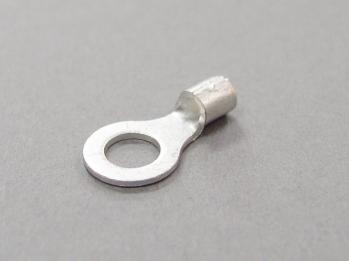

(R 2-5)
9.84
Package Qty: 1000
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
Stud:
#10
AWG:
16-14
B:
9.5mm / 0.37"
L:
17mm / 0.67"
F:
7.75mm / 0.31"
E:
4.5mm / 0.18"
øD:
4.2mm / 0.17"
ød:
2.3mm / 0.09"
ød2:
5.3mm / 0.21"
Wire Size Range for Solid Wire (mm):
1.14-1.82
Wire Size Range for Stranded Wire (mmø|):
1.04-2.63
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
Standards:
UL, CSA, JIS
