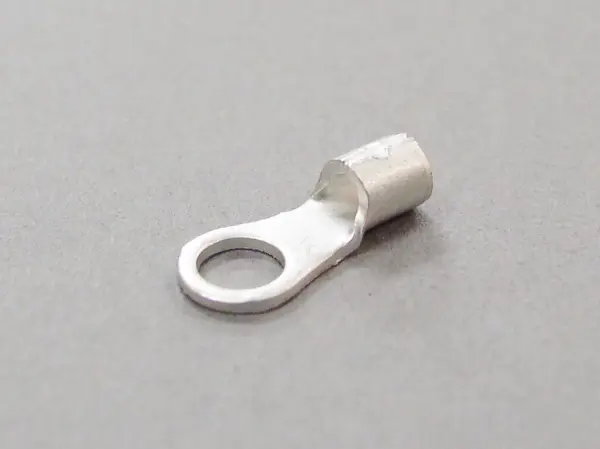

Non-Insulated Ring Terminals - R Type

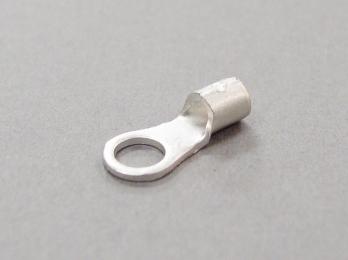

(R 2-4S)
9.71
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 8
  • AWG: 16-14
  • B: 6.6
  • l: 14.4
  • F: 6.6
  • E: 4.5
  • ⌀d: 2.3, 4.2
  • ⌀d2: 4.3
  • Wire Size Range for Solid Wire (mm): 1.14-1.82
  • Wire Size Range for Stranded Wire (mm²): 1.04-2.63
  • Material: Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
