Non-Insulated Terminals and Sleeves
∕
Non-Insulated Ring Terminals
∕
R Type Ring Terminals
∕ Non-Insulated Ring Terminals - R Type

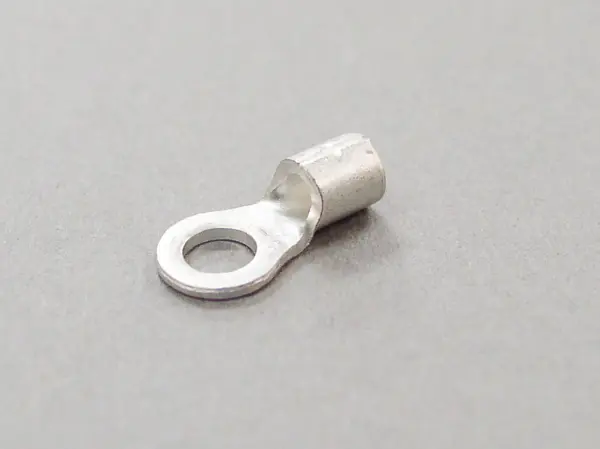

Non-Insulated Ring Terminals - R Type

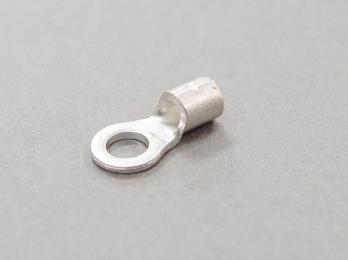

(R 2-3.5NS)
9.34
Package Qty: 1000
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
Stud:
#6
AWG:
16-14
B:
6.5mm / 0.26"
L:
12.7mm / 0.5"
F:
4.95mm / 0.19"
E:
4.5mm / 0.18"
øD:
4.2mm / 0.17"
ød:
2.3mm / 0.09"
ød2:
3.7mm / 0.15"
Wire Size Range for Solid Wire (mm):
1.14-1.82
Wire Size Range for Stranded Wire (mmø|):
1.04-2.63
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
Standards:
UL, CSA
