Non-Insulated Terminals and Sleeves
∕
Non-Insulated Ring Terminals
∕
R Type Ring Terminals
∕ Non-Insulated Ring Terminals - R Type

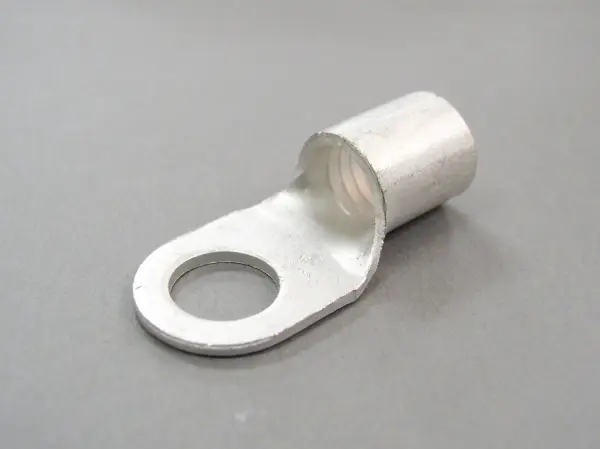

Non-Insulated Ring Terminals - R Type
(R 60-12)
1.9959
Package Qty: 100
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
Stud:
1/2"
AWG:
1/0
B:
22mm / 0.87"
L:
48.5mm / 1.91"
F:
19mm / 0.75"
E:
18.5mm / 0.73"
øD:
15.6mm / 0.61"
ød:
11.4mm / 0.45"
ød2:
13mm / 0.51"
Wire Size Range for Stranded Wire (mmø|):
42.42-60.57
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
Standards:
UL, CSA, JIS
