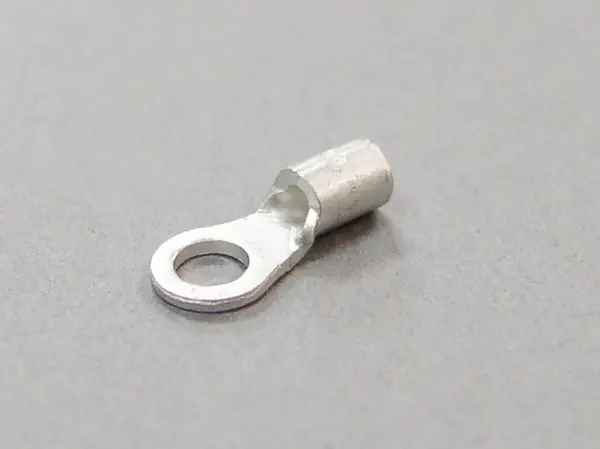

Non-Insulated Ring Terminals - R Type

(R 1.25-3)
7.49
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 4
  • AWG: 22-16
  • B: 5.5
  • l: 12
  • F: 4.75
  • E: 4.5
  • ⌀d: 1.7, 3.4
  • ⌀d2: 3.2
  • Wire Size Range for Solid Wire (mm): 0.57-1.44
  • Wire Size Range for Stranded Wire (mm²): 0.25-1.65
  • Material: Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA, JIS
