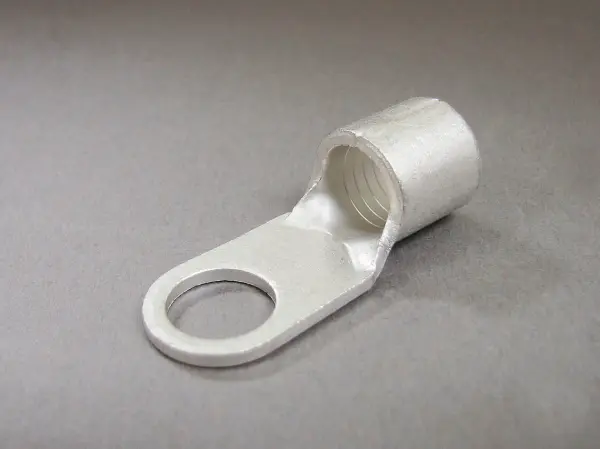

Non-Insulated Ring Terminals - R Type

(R 38-10S)
122.6
Package Qty: 100
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 3/8"
  • AWG: 2
  • B: 15.3mm / 0.6"
  • L: 39mm / 1.54"
  • F: 18.35mm / 0.72"
  • E: 13mm / 0.51"
  • øD: 13.4mm / 0.53"
  • ød: 9.4mm / 0.37"
  • ød2: 10.5mm / 0.41"
  • Wire Size Range for Stranded Wire (mmø|): 26.66-42.42
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
