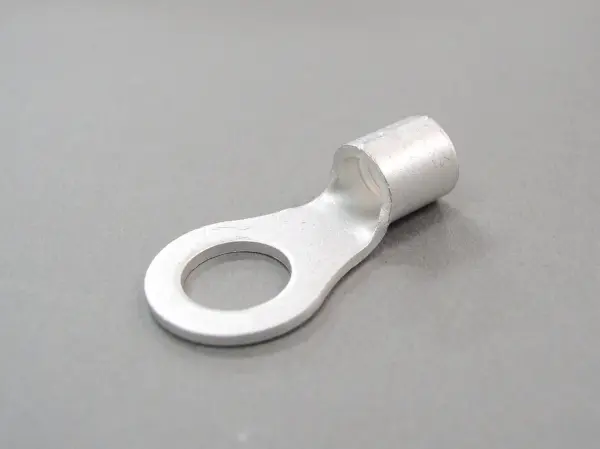

Non-Insulated Ring Terminals - R Type

(R 22-12)
61.3
Package Qty: 50
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 1/2"
  • AWG: 4
  • B: 22mm / 0.87"
  • L: 42.3mm / 1.67"
  • F: 19.3mm / 0.76"
  • E: 12mm / 0.47"
  • øD: 11.6mm / 0.46"
  • ød: 7.7mm / 0.3"
  • ød2: 13mm / 0.51"
  • Wire Size Range for Stranded Wire (mmø|): 16.78-26.66
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA, JIS
