Non-Insulated Terminals and Sleeves
∕
Non-Insulated Ring Terminals
∕
R Type Ring Terminals
∕ Non-Insulated Ring Terminals - R Type

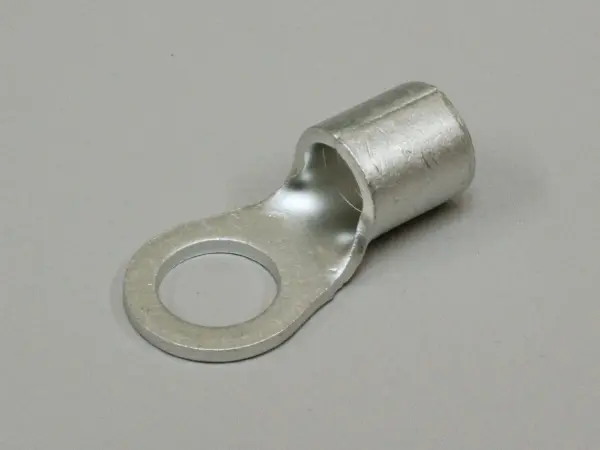

Non-Insulated Ring Terminals - R Type
(R 22-10S)
0
Package Qty: 100
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
Stud:
3/8"
AWG:
4
B:
16.5mm / 0.65"
L:
33.3mm / 1.31"
F:
13mm / 0.51"
E:
12mm / 0.47"
øD:
11.6mm / 0.46"
ød:
7.7mm / 0.3"
ød2:
10.5mm / 0.41"
Wire Size Range for Stranded Wire (mmø|):
16.78-26.66
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
