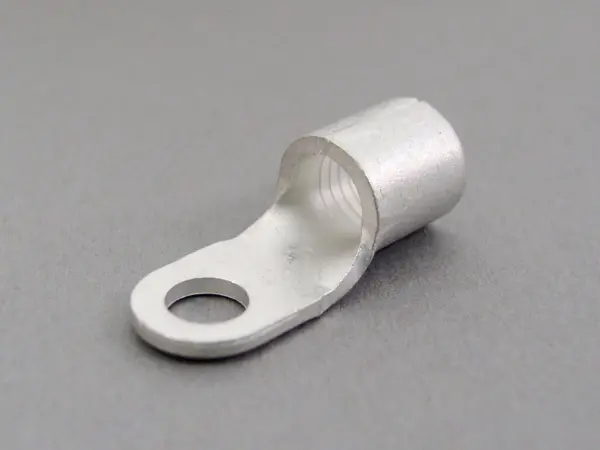

Non-Insulated Ring Terminals - R Type

(R 22-6S)
103.77
Package Qty: 100
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 1/4"
  • AWG: 4
  • B: 11.8mm / 0.46"
  • L: 31.4mm / 1.24"
  • F: 13.5mm / 0.53"
  • E: 12mm / 0.47"
  • øD: 11.6mm / 0.46"
  • ød: 7.7mm / 0.3"
  • ød2: 6.4mm / 0.25"
  • Wire Size Range for Stranded Wire (mmø|): 16.78-26.66
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
