Non-Insulated Ring Terminals - 90 Degree Bent

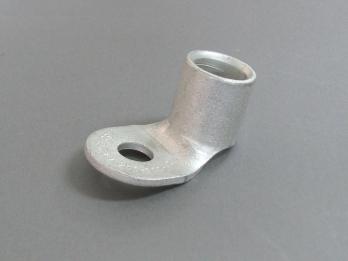

(R 60-12-B)
0
Package Qty: 100
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 1/2"
  • AWG: 1-00
  • B: 22mm / 0.87"
  • S: 11mm / 0.43"
  • F (MIN): 22mm / 0.87"
  • E: 18.5mm / 0.73"
  • øD: 15.6mm / 0.61"
  • ød: 11.4mm / 0.45"
  • ød2: 13mm / 0.51"
  • Wire Size Range for Stranded Wire (mmø|): 42.42-60.57
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL
