Chain Terminals and Crimping Machines
∕
Non-Insulated Chain Terminals (CT) - Rings
∕ Non-Insulated Chain Terminals (CT) - Rings

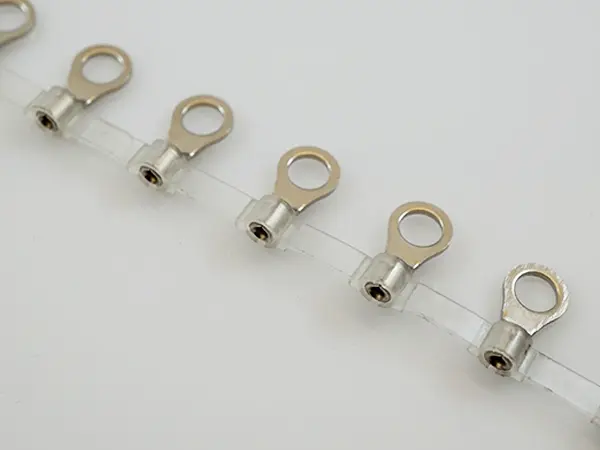

Non-Insulated Chain Terminals (CT) - Rings
(CT 2-10)
0
Package Qty: 1500
Quantity:
Add to Quote
Features
CONNECTED INSULATED TERMINAL:
Each terminal has a fixed distance which enables it to crimp continuously.
EASY CRIMP:
Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
QUALITY CRIMP:
ICT crimping gets a consistent quality crimp.
Specifications
AWG:
16-14
ød2:
10.5mm / 0.41"
B:
15mm / 0.59"
L:
24.5mm / 0.96"
F:
12.5mm / 0.49"
E:
4.5mm / 0.18"
ød:
2.3mm / 0.09"
Wire Size Range for Solid Wire (mm):
1.14-1.82
Wire Size Range for Stranded Wire (mm²):
1.04-2.63
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plated)
Applicable Applicator:
NC 2A
Standards:
UL, CSA
RoHS:
RoHS 10
