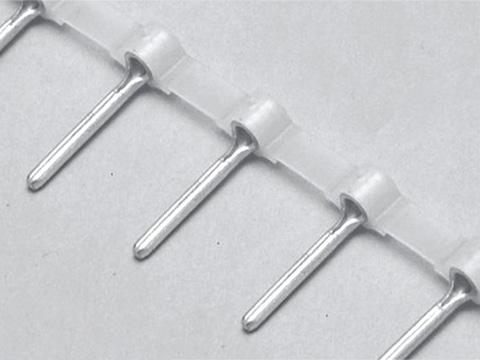

Non-Insulated Chain Terminals (CT) - Pins

(CT TC-2-11)
0
Package Qty: 1500
Quantity:

Features
  • CONNECTED INSULATED TERMINAL: Each terminal has a fixed distance which enables it to crimp continuously.
  • EASY CRIMP: Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
  • QUALITY CRIMP: ICT crimping gets a consistent quality crimp.
Specifications
  • AWG: 16-14

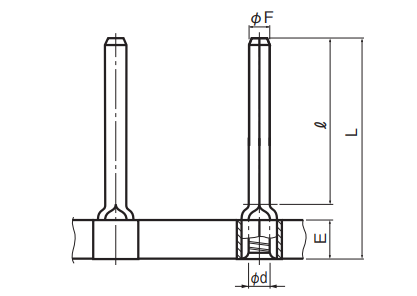

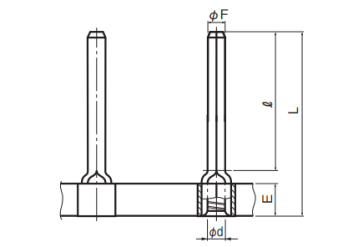

  • øF: 1.9mm / 0.07"
  • l: 11mm / 0.43"
  • L: 17.5mm / 0.69"
  • E: 4.5mm / 0.18"
  • ød: 2.3mm / 0.09"
  • Wire Size Range for Solid Wire (mm): 1.14-1.82
  • Wire Size Range for Stranded Wire (mm²): 1.04-2.63
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Applicable Applicator: NC 2AC
  • Standards: UL, CSA
  • RoHS: RoHS 10
